Pressure Transmitter

(0 review)
Write a review



Availability: Usually ships in 3 to 4 weeks

Shipping: FREE FedEx /UPS Ground
Warranty: 1 year replacement Warranty

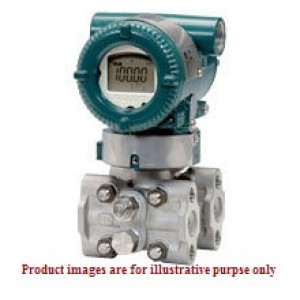

The high performance differential pressure transmitter EJX110A features single crystal silicon resonant sensor and is suitable to measure liquid, gas, or steam fl ow as well as liquid level, density and pressure. EJX110A outputs a 4 to 20 mA DC signal corresponding to the measured differential pressure. Its highly accurate and stable sensor can also measure the static pressure which can be shown on the integral indicator or remotely monitored via BRAIN or HART communications. Other key features include quick response, remote set-up using communications, diagnostics and optional status output for pressure high/low alarm. The multi-sensing technology provides the advanced diagnostic function to detect such abnormalities as an impulse line blockage or heat trace breakage. FOUNDATION Fieldbus and PROFIBUS PA protocol types are also available. All EJX series models in their standard confi guration, with the exception of the Fieldbus and PROFIBUS types, are certifi ed as complying with SIL 2 for safety requirement.

Product Specification
Output Signal 4 to 20 mA DC with digital communication (HART 5/HART 7 protocol)
Measurement span (capsule) 0.5 to 100 kPa (2 to 400 inH2O)
Electrical connection 1/2 NPT female, two electrical connections and a SUS316 blind plug
Integral indicator Digital indicator
Process connections with 1/2 NPT female process connector
